Fvwop

Download URL | Author URL | Software URL | Buy Now ($0)

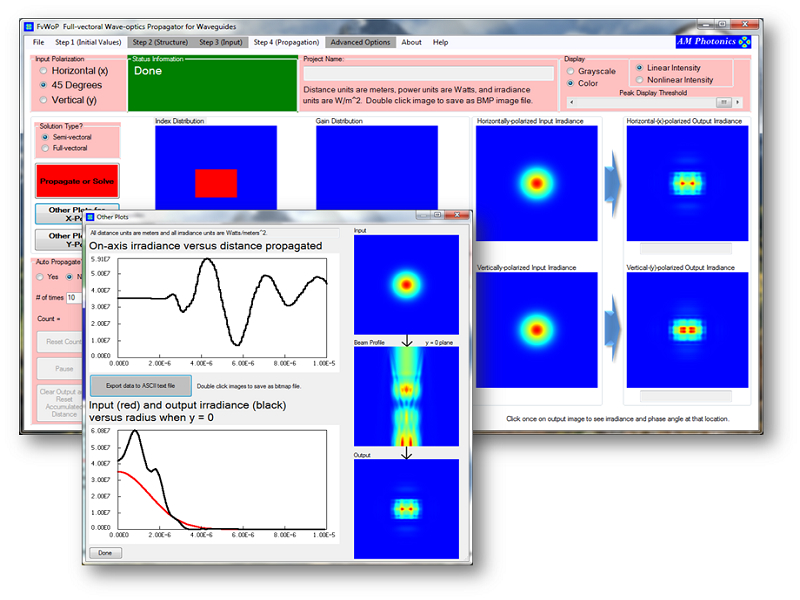

Full-vectoral (vectorial) wave-optics beam propagator for optical waveguides that solves for beams of horizontal and vertical polarizations. Create your own optical waveguide structure using the graphical user interface, define the input beam, define a waveguide length, then press one button to propagate the beam through the waveguide. See the output beam's irradiance distribution and the beam's profile as it propagates. You can also include gain in the waveguide to simulate fiber laser amplifiers.

Optical waveguide structures include rib waveguides, step-index fiber waveguides, photonic crystal fiber waveguides, multi-core fibers, hexagonal segment fiber waveguides, tapered fibers, and graded-index fibers.

Use advanced features like imaginary-z-axis propagation to find the fundamental mode and all the higher-order waveguide modes. Then use these modes as inputs.

Use birefringence, gain, gain saturation, the reference index, propagation step size, propagation distance, or nonlin
