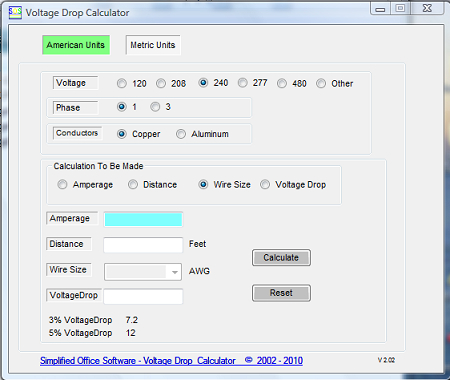

Voltagedropcalculator

Download URL | Author URL | Software URL | Buy Now ($0)

Calculate Amperage, Distance, Wire Size or Voltage Drop. American & Metric measurements & wire sizes.
Select Single Phase & Three Phase systems.
Select Copper Or Aluminum wire choice.

The app is meant to limit the voltage drop to a specific value. The actual conductor shown might not be the sized required by the NEC for continuous loads, motor loads, terminal rating, ambient temperature, conductor bundling, insulation type, etc. When sizing conductors, check the conductor size for voltage drop after you have determined the conductor size required by the NEC or other applicable codes.
